Outdoor Aerial Light Armored GYXTW Fiber Optic Cable

สถานที่กำเนิด กวางตุ้งจีน
ชื่อแบรนด์ KCO, Kocent Optec Limited
ได้รับการรับรอง ISO9001, RoHS
หมายเลขรุ่น KCO-GYXTW-xA1
จำนวนสั่งซื้อขั้นต่ำ การเจรจาต่อรอง
ราคา negotiable
รายละเอียดการบรรจุ ม้วนไม้พาเลทไม้
เวลาการส่งมอบ 3 ~ 5 วันหลังจากได้รับการชำระเงิน
เงื่อนไขการชำระเงิน Western Union, T/T, L/C
สามารถในการผลิต 10,000 กม./ เดือน

ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง

Whatsapp:0086 18588475571

วีแชท: 0086 18588475571

Skype: sales10@aixton.com

หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
วัสดุ PE, LDPE, HDPE ชื่อ สายไฟเบอร์ออปติกกลางแจ้ง
ความยาว 2 กม.~3 กม. ต่อม้วน ประเภทสายเคเบิล Gyxtw
เส้นใย มัลติโหมด OM2 50/125 แกน 2 คอร์ถึง 24 คอร์
สี สีดำ เส้นผ่าศูนย์กลาง 7.0 มม.
หมายเลขชิ้นส่วน gyxtw-xa1
เน้น

outdoor aerial fiber optic cable

,

armored GYXTW fiber cable

,

weatherproof fiber optic cable

ฝากข้อความ
รายละเอียดสินค้า

Outdoor Aerial Light Armored GYXTW Fiber Optic Cable

1. What is GYXTW fiber optic cable?

The GYXTW fiber optic cable is a type of outdoor, light-armored fiber optic cable for use in aerial or duct installations.

Its name describes its construction:

  • --> GY for outdoor use,
  • --> X for a central loose tube structure,
  • --> T for a filled/water-blocking structure,
  • --> W for a steel polyethylene bonded sheath with steel wires for armor.

GYXTW fiber optic cable is an outdoor use fiber loose tube cable for duct, aerial and direct buried applications. With water-blocking materials filled, ensure the compactness and longitudinal water-blocking performance.

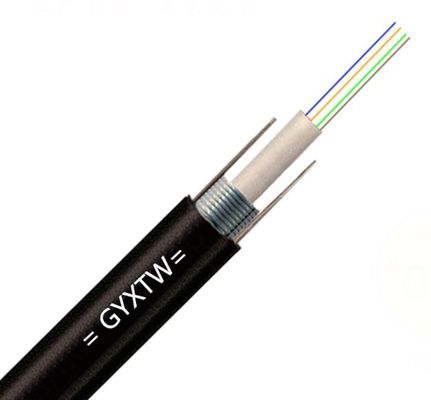

2. Construction:

Outdoor Aerial Light Armored GYXTW Fiber Optic Cable 0

3. Characteristics:

  • Steel-wire parallel member, filler protect tube fiber steel tape armored.
  • Excellent mechanical and environmental performance.
  • Compact structure, light weight can be installed conveniently and operated simply.

4. Applications:

  • Adopted to Outdoor distribution.
  • Suitable for aerial, pipeline laying method.
  • Long distance and local area network communication.

5. Cable Mechanical Characteristic:

Fiber number Cable diameter Weight
1~24
7.0mm+-0.1mm 50kg/km

Temperature range -40°C to +70°C
Min Bending Radius(mm) Long term 10D
Min Bending Radius(mm) Short term 20D
Min allowable Tensile Strength(N) Long term 1200
Min allowable Tensile Strength(N) Short term 1500
Operation temperature -40°C+70°C
Installation temperature -20°C+60°C
Storage temperature -40°C+70°C

6. Fiber characteristic:

Fiber style Unit MM
condition nm 850/1300
attenuation dB/km ≤3.0/1.0
----
Dispersion 1550nm Ps/(nm*km) Dispersion
1625nm Ps/(nm*km)
Bandwidth 850nm MHZ.KM Bandwidth
1300nm MHZ.KM
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber ≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----
1550nm um ----
Numerical Aperture(NA) 0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10

7. Fiber color:

1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua
