Inline Horizontal Fiber Optic Splice Closure , Outdoor Water Proof Fiber Joint Box 6 Cores

Place of Origin Guangdong, China
ชื่อแบรนด์ KCO, Kocent Optec Limited
ได้รับการรับรอง iSO9001, RoHS
Model Number KCO-H-1-1-02
Minimum Order Quantity Negotiation
ราคา Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง

Whatsapp:0086 18588475571

วีแชท: 0086 18588475571

Skype: sales10@aixton.com

หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
Type Inline type Cable ports 2ports
Cable diameter 8.0~22.0mm Min. capacity 4 cores
Max capacity 24 cores Material PPR, ABS, PC, PP
แสงสูง

fiber optic joint closure

,

fibre optic splice closure

ฝากข้อความ
รายละเอียดสินค้า





Inline Horizontal Fiber Optic Splice Closure , Outdoor Water Proof Fiber Joint Box 6 Cores



Quick detail about horizontal fiber optic splice closure:

- Name: Inline/ Horizontal Type Fiber Optic Connection Box

- Part number: KCO-H-1-1-02

- Size: 390*140*80mm

- Weight: about 1.0kg

- Cable entry port: 2 ports

- Capacity of fibers: 36 cores

- Splice tray number: max. 3 trays

- Material: ABS / PC / PPR / PP Plastic

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃



Features:

- Widely used in FTTH access network

- Aerial-hanging

- Wall-mounting

- Duct

- Direct-bury



Technical Parameter:

- Working Temperature: -40 degrees centigrade~+70 degrees centigrade
- Atmospheric Pressure: 70~150Kpa
- Axial Tension: >2000N/1min
- Stretching Resistance: 2500N/10 square centimetre(1min)
- Insulation resistance: >2*104MΩ
- Voltage Strength: 15KV/1min, no arcover or breakdown
- Pressure in the water: 50m/72hours
- Splice tray with optical taking-in radius≥40mm. Low optical loss



Descriptions:

- The fiber optic splice closure is used in the field of cable network, overhead pipe, buried wiring connection or joint protection equipment.
- All property indexes are in accordance with National YD/T814-1996 Standard.
- The case body is made from imported high-intensity engineering plastics (ABS) and formed the shape with mould plastics under high pressure. It is in the shape of half rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck andlong service life.
- The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) andsealed tape. - Reliable sealing capability.

- It can be re-opened and easy to maintain.


Applications:
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks

- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.

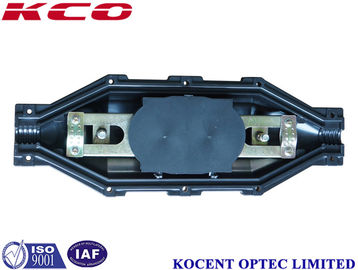

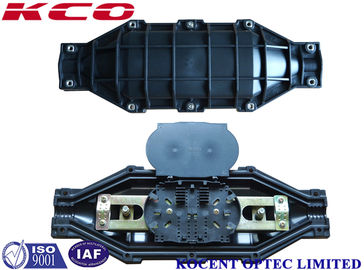

Product pictures:

Inline Horizontal Fiber Optic Splice Closure , Outdoor Water Proof Fiber Joint Box 6 Cores 0





Main parts:

No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable,reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement,inspection sealing Configure by user



Accessories list:

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable tube   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air.



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
