Indoor Wall Mountable 1 Port FTTH Fiber Optic Terminal Box FTB-01-1fo

Place of Origin Guangdong, China
ชื่อแบรนด์ KCO, Kocent Optec Limited
ได้รับการรับรอง ISO9001
Model Number FTB-01-1fo
Minimum Order Quantity Negotiation
ราคา Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 3-5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง

Whatsapp:0086 18588475571

วีแชท: 0086 18588475571

Skype: sales10@aixton.com

หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
Material ABS & PC Insertion loss 0.2dB
Return loss 55dB Connector SC, FC, ST, LC, E2000, etc
Application indoor Capacity 1 core
แสงสูง

optical termination box

,

fibre termination box

ฝากข้อความ
รายละเอียดสินค้า

Indoor Wall Mountable 1 Port Fiber Optic FTTH Terminal Box FTB-01-1fo



Over View:

FTB-01-1fo is an indoor terminal applied in the FTTX network to connect the drop cable and ONU devices through fiber port. FTB-01-1fo covers the capacity of 1core and supports splicing, mechanical connection and FMC, wall mounted installation.



Feature:

  • Excellent ergonomics design, graceful appearance and convenience operation
  • Plug fiber without having to open the shell, easily accessible fiber operation
  • Vertically downward port to avoid causing personal injury
  • White color, graceful style and good adaptability to environment.
  • Fiber cable inlets in every direction, supports the cable inlets for different scenarios.
  • Friendly operation interface, high reliability
  • Introductions clear, effectively prevent the miss-operation.
  • Low construction cost



Application:

  • Widely used in FTTH access network.
  • Telecommunication / CATV / Data Communication Networks

Product picutures:

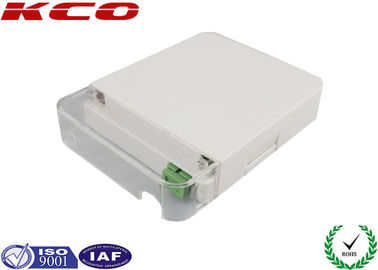

Indoor Wall Mountable 1 Port FTTH Fiber Optic Terminal Box FTB-01-1fo 0

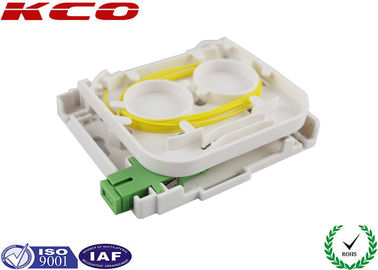

Indoor Wall Mountable 1 Port FTTH Fiber Optic Terminal Box FTB-01-1fo 1



Qualification:

- Nominal work wave-length: 850nm,1310nm,1550nm

- Connectors loss: ≤0.2dB

- Insert loss: ≤0.2dB

- Return loss: >=50dB(UPC),>=60dB(APC)

- Insulation resistance (between frame and protection grounding): >1000MΩ/500V(DC)



Parameters:

Item FTB-01-1fo
Size (H×W×D) 86×115×23mm
Color White
Material ABS+PC
Capacity(cores) 1
Connect Models Splicing,Mechanical Connector, FMC
Installation Models Wall Mounted
Protective Level IP4X
Pigtail G.657 Ф0.9mm, 0.5m Or customer request
Drop cable(Flat) Indoor Flat Drop cable 2mm×3mm
drop cable (Round) Φ5mm~Φ7mm
Curvature Radius(mm) ≥15
Working Temp. -25℃~+60℃
Storage Temp. -40℃~+70℃
Humidity 93%(+30℃)
Air Pressure 70KPa~106KPa



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
