LGX Module G657A Fiber Optic Splitter FTTH GPON PON 1 x 64 Port
Place of Origin | Guangdong, China |
---|---|
ชื่อแบรนด์ | KCO, Kocent Optec Limited |
ได้รับการรับรอง | ISO9001, RoHS |
Model Number | PLC-LGX-1x64-SCU |
Minimum Order Quantity | Negotiation |
ราคา | negotiable |
Packaging Details | Carton box, wooden pallet |
Delivery Time | 5~8 days |
Payment Terms | Western Union, T/T, L/C |
Supply Ability | 20,000 set/ month |

ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง
Whatsapp:0086 18588475571
วีแชท: 0086 18588475571
Skype: sales10@aixton.com
หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xFiber type | single mode G657A1 | IL | 20.5dB |
---|---|---|---|
RL | >55dB | Directivity | 55dB |
PDL | 0.3dB | Cable diameter | 0.9mm, 1.6mm, customized |
เน้น | PLC Optical Splitter,ABS Box PLC Splitter |
LGX Module G657A Fiber Optic PLC Splitter FTTH GPON PON 1 x 64 Port
Fiber optic PLC Splitter Features:
- Low insertion loss.
- Low Polarization Dependent Loss.
- Excellent Environmental Stability.
- Excellent Mechanical Stability.
- Meet Telcordia GR-1221 and GR-1209.
Fiber optic PLC Spltiter quick informations:
- Type: LGX cassttle module
- Port Configuration: 1x64, 1*64
- Connector: SC/UPC
Fiber optic PLC Splitter Applications:
- Fiber to The Point (FTTX).
- Fiber to The Home (FTTH).
- Passive Optical Networks (PON).
- Gigabit Passive Optical Networks (GPON).
- Local Area Networks (LAN).
- Cable Television (CATV).
- Test Equipment.
Fiber optic PLC Splitter Descriptions:
Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.
1x64 LGX cassttle module fiber optic plc splitte is also called 1*64 LGX module optical fiber plc splitter, plc fiber optic splitter, plc optical fiber splitter, fiber optical splitter, plc fiber splitter, plc optical splitter.

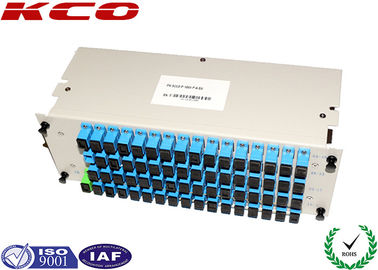

Fiber optic PLC Splitter Product picture:
Fiber optic PLC Splitter Specifications:
Fiber length | 1m or custom length | |||||
Connector Type | Custom specified | |||||
Optical Fiber Type | Corning SMF-28e fiber, G657A1 or as customized | |||||
Directivity (dB) Min * | 55 | |||||
Return Loss (dB) Min * | 55 (50) | |||||
Power Handling (mW) | 300 | |||||
Operating Wavelength (nm) | 1260 ~ 1650 | |||||
Operating Temperature(°C) | -40~ +85 | |||||
Storage Temperature(°C) | -40 ~ +85 | |||||
Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
PDL(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temp. Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Port Configuration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
Insertion Loss(dB) Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17 | 21 |
Insertion Loss (dB) Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
Loss Uniformity (dB) | 1 | 1.4 | 1.5 | 2 | 2.5 | 2.5 |
PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
Wavelength Dependent Loss(dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
Temp. Dependent Loss(-40~+85°C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |
Fiber optic PLC Splitter Packing:
LGX Cassette 1x64 fiber optic PLC splitter OEM and ODM service is always already!
Kocent Optec Limited is one of the largest and best LGX Cassette 1x64 fiber optic PLC splitter manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized LGX Cassette 1x64 fiber optic PLC splitter in stock with our factory. Also, free sample is also available if necessary.
