FTTH GPON Fiber Optic Splitter 1X16 Single Mode Cable LGX Cassette
Place of Origin | Guangdong, China |
---|---|
ชื่อแบรนด์ | KCO, Kocent Optec Limited |
ได้รับการรับรอง | ISO9001, RoHS |
Model Number | PLC-LGX-1x16-SCU |
Minimum Order Quantity | Negotiation |
ราคา | Negotiation |
Packaging Details | Carton box, wooden pallet |
Delivery Time | 5~8 days |
Payment Terms | Western Union, T/T, L/C |
Supply Ability | 20,000 set/ month |

ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง
Whatsapp:0086 18588475571
วีแชท: 0086 18588475571
Skype: sales10@aixton.com
หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xRL | >55dB | IL | 13.5dB |
---|---|---|---|
Fiber type | single mode G657A1 corning fiber or customized | Adapter | SC/UPC or customized |
Directivity | 55dB | PDL | 0.3dB |
แสงสูง | Planar Lightwave Circuit Splitter,ABS Box PLC Splitter |
FTTH GPON Fiber Optic PLC Splitter 1X16 Single Mode Cable LGX Cassette
Fiber optic PLC Splitter Descriptions:
Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.
1x16 LGX cassttle module fiber optic plc splitte is also called 1*16 LGX module optical fiber plc splitter, plc fiber optic splitter, plc optical fiber splitter, fiber optical splitter, plc fiber splitter, plc optical splitter.
Fiber optic PLC Spltiter quick informations:
- Type: LGX cassttle module
- Port Configuration: 1x16, 1*16
- Connector: SC/UPC
Fiber optic PLC Splitter Applications:
- Fiber to The Point (FTTX).
- Fiber to The Home (FTTH).
- Passive Optical Networks (PON).
- Gigabit Passive Optical Networks (GPON).
- Local Area Networks (LAN).
- Cable Television (CATV).
- Test Equipment.
Fiber optic PLC Splitter Features:
- Low insertion loss.
- Low Polarization Dependent Loss.
- Excellent Environmental Stability.
- Excellent Mechanical Stability.
- Meet Telcordia GR-1221 and GR-1209.

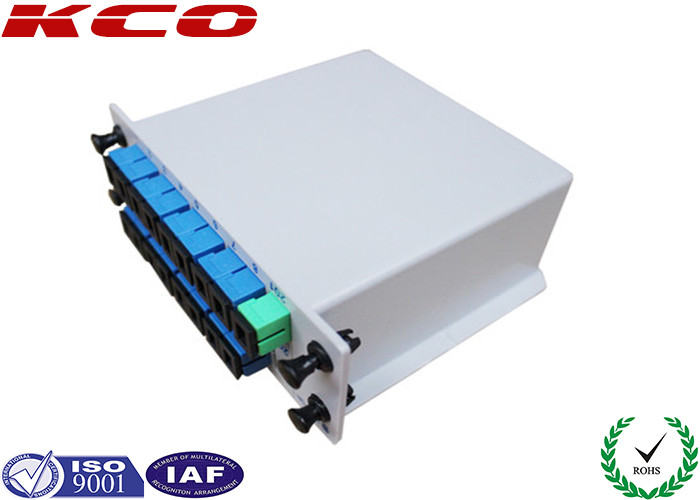

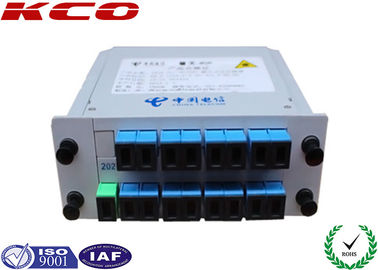

Fiber optic PLC Splitter Product picture:
Fiber optic PLC Splitter Specifications:
Fiber length | 1m or custom length | |||||
Connector Type | Custom specified | |||||
Optical Fiber Type | Corning SMF-28e fiber, G657A1 or as customized | |||||
Directivity (dB) Min * | 55 | |||||
Return Loss (dB) Min * | 55 (50) | |||||
Power Handling (mW) | 300 | |||||
Operating Wavelength (nm) | 1260 ~ 1650 | |||||
Operating Temperature(°C) | -40~ +85 | |||||
Storage Temperature(°C) | -40 ~ +85 | |||||
Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
PDL(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temp. Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Port Configuration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
Insertion Loss(dB) Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17 | 21 |
Insertion Loss (dB) Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
Loss Uniformity (dB) | 1 | 1.4 | 1.5 | 2 | 2.5 | 2.5 |
PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
Wavelength Dependent Loss(dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
Temp. Dependent Loss(-40~+85°C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
