Field Installable Fiber Optic Connector

Fast connectors quick detail:

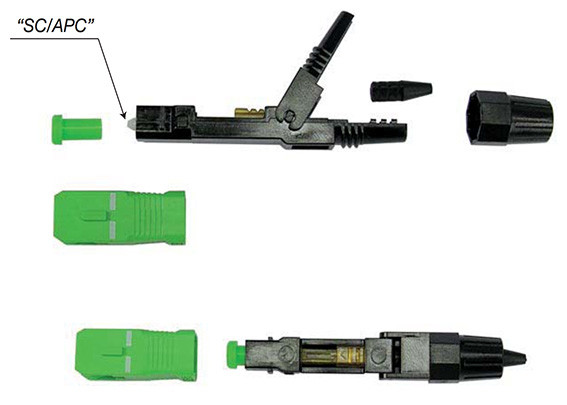

- Name: SC/APC 0.9mm Fiber Optic Fast Connector

- P/N: FAC-SCA-0.9

- Ferrule end-face: APC

- Ferrule size: 2.5mm

- Structure: Pre-polished, Un-polished

- Connector type: SC

- Fiber: G652D G657A

- Cable diameter: 0.9mm indoor fiber optic cabe

Fast connectors Introductions:

- Fiber optic fast connectors, also is fiber optic quick connectors, fiber optic quick assembly connector, fiber optic field assembly connector, fiber optic fast assembly connectors.

- Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.It is designed for high quality and high efficiency for installation.

- The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.

- Adopted fiber preinstalled structure, and convenient for field installation.

- Fast connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.

- The connectors mechanically couple and align the cores of fibers so light can pass.

- Better connectors lose very little light due to reflection or misalignment of the fibers.

Fast connectors descriptions:

Quick assembly connector is used for field-installable optical fiber connector, screw design widely used in FTTH access optical network, include Single mode and Multimode and suitable for 2*3.0mm drop cable and also can be suitable with 0.9mm, 2.0mm, 3.0mm indoor fiber optic cable.
